20 ft Container Home w/ Bump-out

$34,026.00

This 20 ft container home features a bump out to increase the square footage from 160 to 220 sq ft!

Category: 20 FT Homes

Description

Reviews (0)

DIMENSIONS

Exterior – 20 ft (L) x 11 ft (W) x 8 ft 6 in (H) NEW STANDARD ContaineR
Bedroom / Living Room – 14 ft 7.5 in (L) x 10 ft (W) x 8 ft (H)
Bathroom – 4 ft (L) x 10 ft (W) x 8 ft (H)

FRAMING & WALLS

2 in x 4 in wood studs on 16 in centers
Drywall, Orange Peel Texture

INSULATION

Closed cell spray foam
Zone 3
These can be modified according to your climate or needs

ELECTRICAL & LIGHTS

Qty 1 – 125 amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
Qty 4 – 110v Duplex Outlets (Bedroom / Living Room)
Qty 1 – 110v GFCI Duplex (Kitchen Counter)
Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
Qty 1 – 110v GFCI Duplex (Bathroom)
Qty 1 – 110v GFCI Exterior Outlet
Qty 2 – 13 in Brushed Nickel Low Profile Lights (Bedroom / Living Room)
Qty 1 – Gray Outdoor Flood Exterior Light

FLOORING

Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
Vapor Barrier installed underneath floor

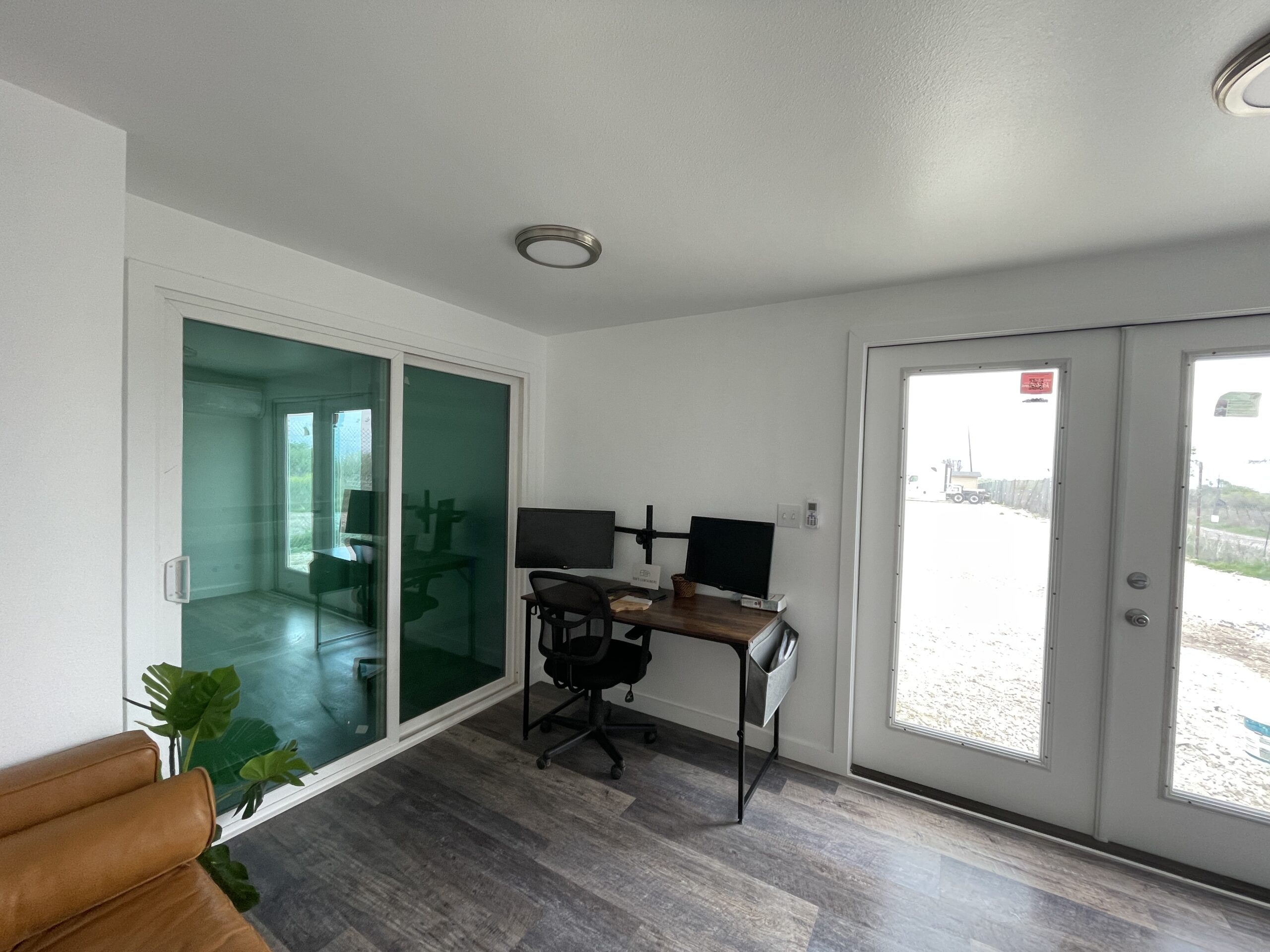

WINDOWS/DOORS

All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
Qty 1 – 72 in x 80 in Full GlassDouble French Door
Qty 1 – 72 in’ X 80 in Sliding Patio Door (Installed Behind the Cargo Doors)
Qty 1 – 24 in x 80 in Pocket Doors (Bathroom)

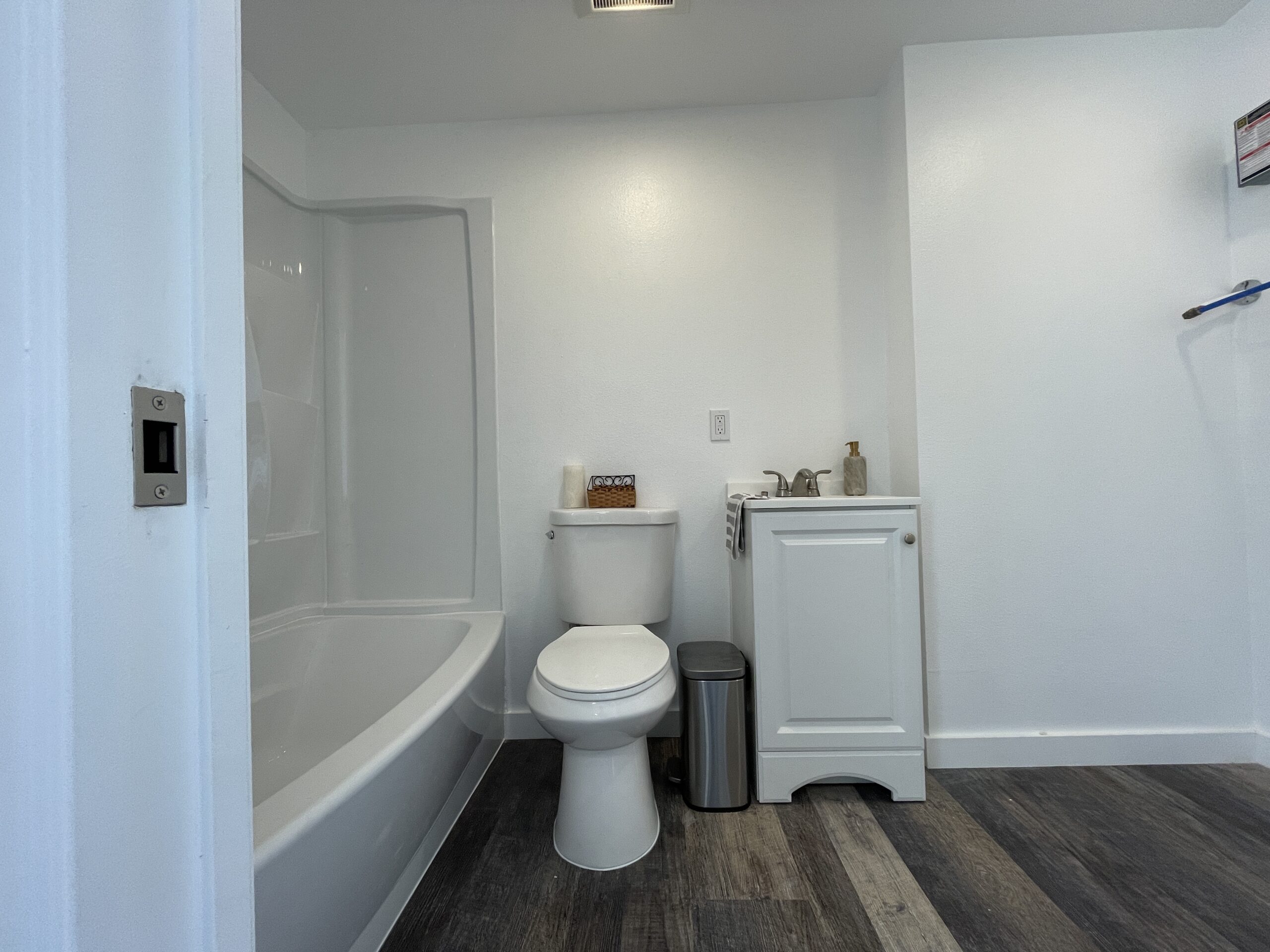

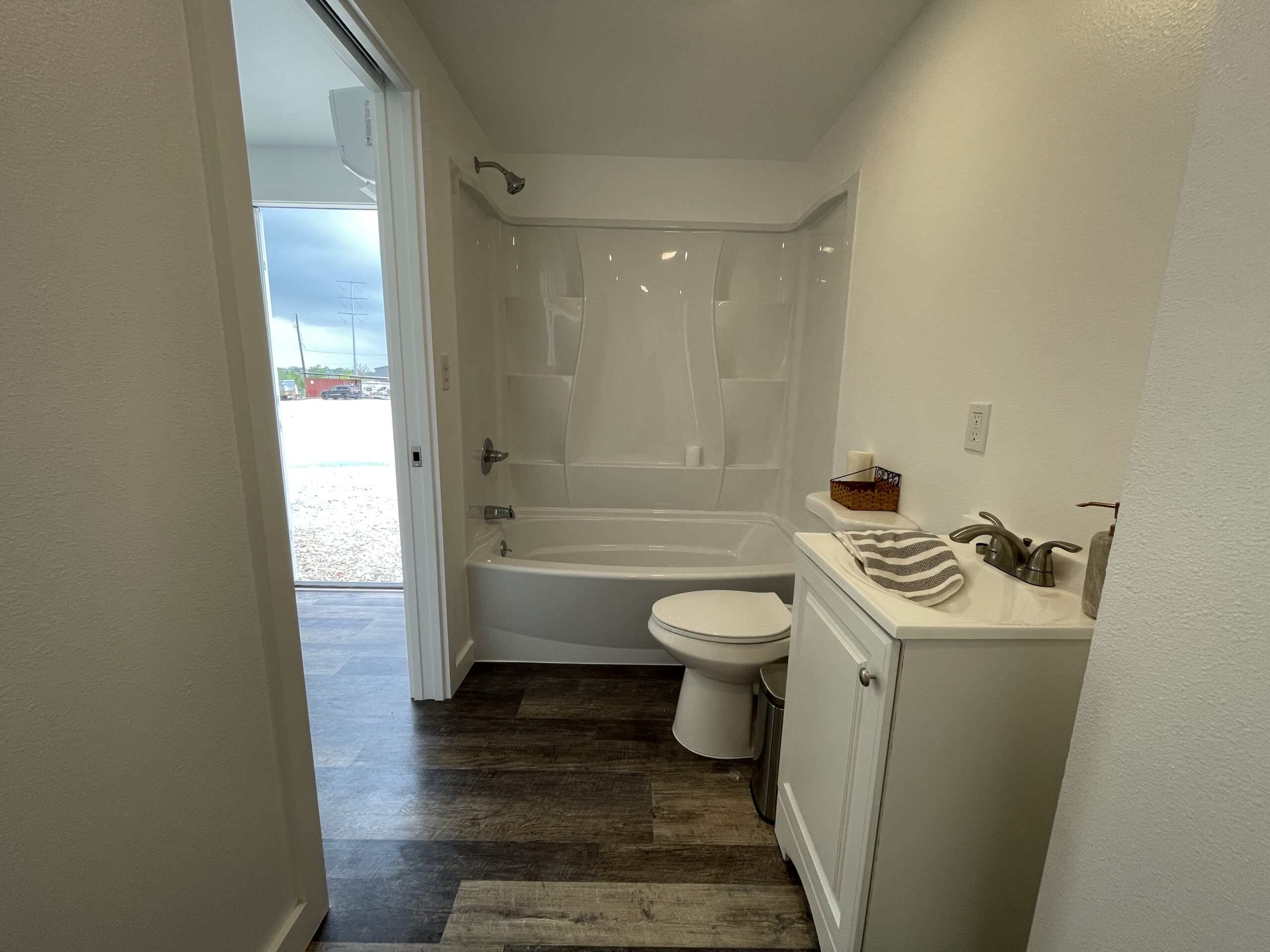

3/4 BATHROOM

Qty 1 – 54 in x 30 in Soaking Bath Tub with Tub Surround
Qty 1 – 1.5 ft Vanity Sink with Faucet
Qty 1 – Standard Toilet 1.6 Gallons
Qty 1 – Vent Fan with Light

LIVING AREA WITH KITCHENETTE

Qty 1 – 3 ft Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
Qty 1 – 18 in (L) x 18 in (W) x 18 in (H) TORVA Single Bay Sink with McKenna Single-Handle Pull-Down Sprayer Kitchen Faucet, Stainless Steel
Qty 1 – Drop-in Two Burner Electric Radiant Stove Top

MEP

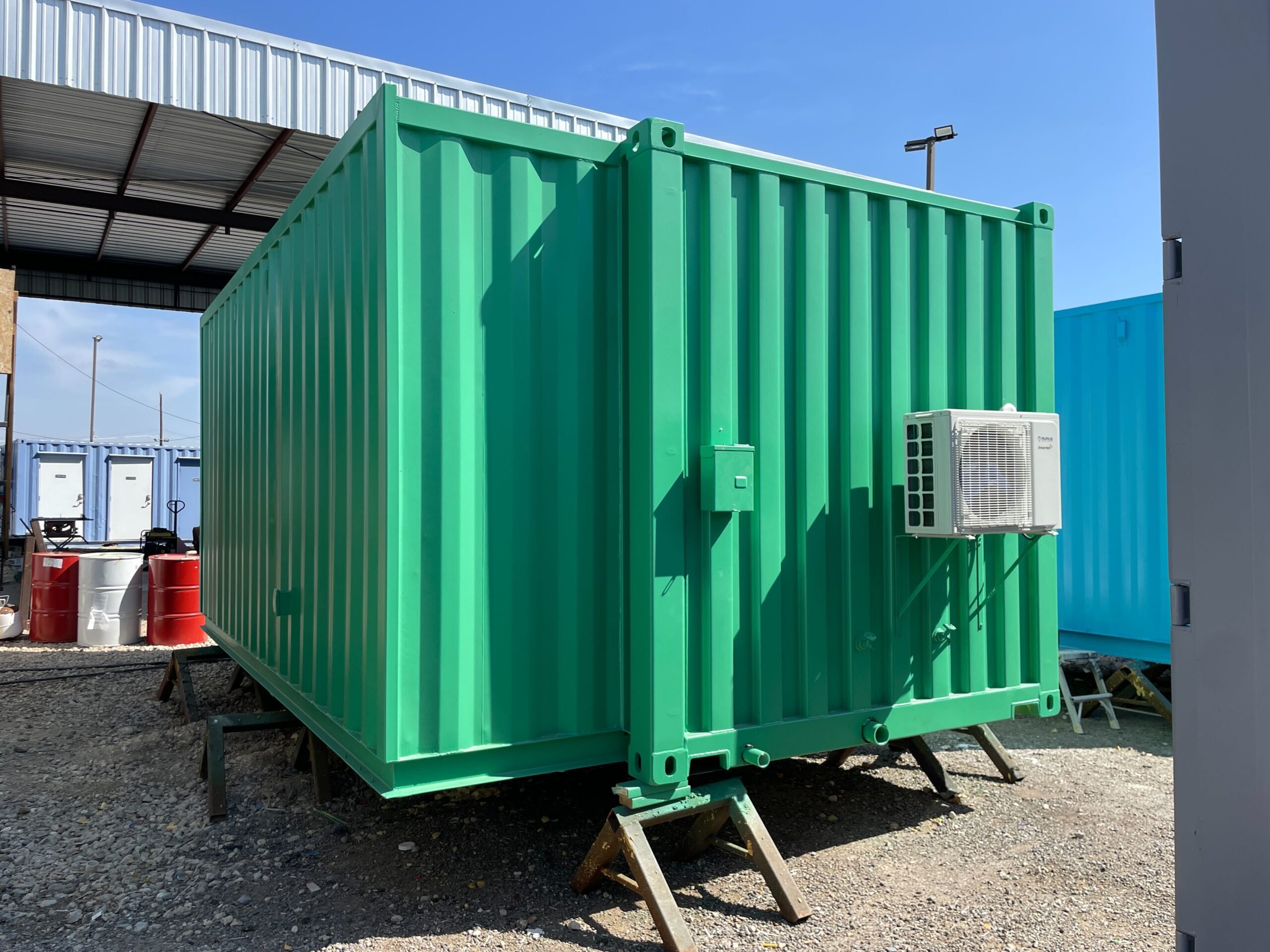

HVAC – AUX One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing
Greywater – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated

EXTERIOR

Custom color, choose your color
Primer Applied
